Second Hand Mini Industrial Robot LR Mate 200iD For Cafe / Ice Cream Station
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Fanuc |
| Certification: | CE |
| Model Number: | LR Mate 200iD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Delivery Time: | 6-8working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 999 sets/month |
|
Detail Information |
|||
| Name: | Second Hand Human Arm Size Mini Industrial Robot LR Mate 200iD For Cafe Station And Ice-cream Station | Brand: | Fanuc |
|---|---|---|---|
| Model: | LR Mate 200iD | Production Year: | 2000-2015 |
| Warranty: | 3 Month | Drive Method: | Electric |
| Payload: | 7kg | Reapetability: | 0.01 Mm |
| Axis: | 6 | ||
| High Light: | 200iD Mini Industrial Robot,Cafe Station Mini Industrial Robot,7kg Payload Used Fanuc Robot |
||
Product Description
human arm size mini industrial robot LR Mate 200iD for cafe station and ice-cream station 6 axis robot arm and handing robot

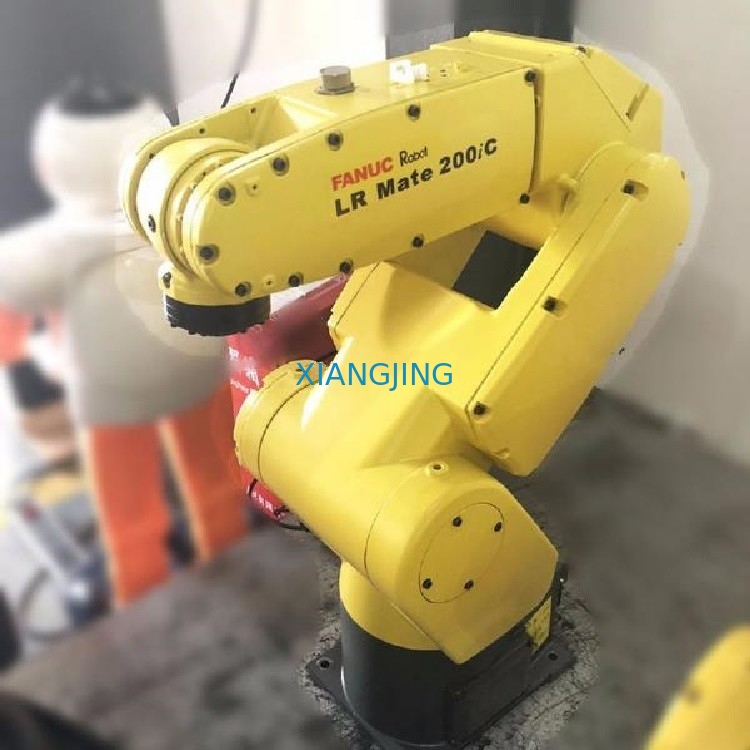

Product image
Product Description
| DESCRIPTION | ||
| Product name | human arm size mini industrial robot LR Mate 200iD for cafe station and ice-cream station 6 axis robot arm and handing robot | |
| Model | LR Mate 200iD | |
| Controlled axes | 6 | |
| Reach | 717mm | |
| Installation | Floor/Upside-down ,Angle mount | |
| Motion range | J1 | 340°/360° 5.93rad/6.28rad |
| J2 | 245° 4.28rad | |
| J3 | 420° 7.33rad | |
| J4 | 380° 6.63rad | |
| J5 | 250° 4.36rad | |
| J6 | 720° 12.57rad | |
| Max.load capacity at wrist | 7kg | |
| Allowable load moment at wrist | J4 | 16.6N.m |
| J5 | 16.6N.m | |
| J6 | 9.4N.m | |
| Allowable load inertia at wrist | J4 | 0.47kg.m2 |
| J5 | 0.47kg.m2 | |
| J6 | 0.15kg.m2 | |
| Repeatability | ±0.01mm | |
| Mass | 25kg | |
