Second Hand Yaskawa AR1440 Welding Robot 6 Axis With 12kg Payload
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YASKAWA |
| Certification: | CE |
| Model Number: | AR1440 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Delivery Time: | 6-8working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 999 sets/month |
|
Detail Information |
|||
| Name: | Used YASKAWA AR1440 Welding Robot With 12 Kg Payload And 1440mm | Brand: | YASKAWA |
|---|---|---|---|
| Model: | AR1440 | Production Year: | 2000-2015 |
| Warranty: | 3 Month | Drive Method: | Electric |
| Reach: | 1440kg | Reapetability: | 0.05 Mm |
| Axis: | 6 | ||
| High Light: | 6 Axis Used Yaskawa Welding Robot,12kg Payload Second Hand Welding Robot,Yaskawa AR1440 Used 6 Axis Robot |
||
Product Description
YASKAWA AR1440 welding robot with 12 kg payload and 1440mm and wire feed system and welder source industrial robot arm 6 axis
Product Description
The six-axis MOTOMAN AR1440 robot provides fast and accurate performance to achieve optimal results in extremely
difficult conditions and especially for the high demands of arc welding applications. With a payload of up to 12 kg, it’s wire feed system, the maximum working range of 1440 mm and integrated media hose package, this robot enables simple machining of bulky and hard-to-access workpieces with high quality results. Further more, the slim design allows high-density robot placement in
confined spaces. The fast motion sequences of the MOTOMAN AR1440 robot reduce welding cycle times and the hollow wrist of 50 mm allow integrated torch cabling in the robot arm in order to avoid collisions with the workpiece or other robots. The integration of the power cable and the air connections in the base enable an enlarged turning range of more than 340°.
| Specification | |
| Product name | YASKAWA AR1440 welding robot with 12 kg payload and 1440mm and wire feed system and welder source industrial robot arm 6 axis |
| Model | AR1440 |
| Maximum reach | 1440mm |
| Maximum payload | 12 kg |
| Pose repeatability (ISO 9283) | ± 0.06 mm |
| Number of axes | 6 |
| Mounting position | Floor/ Ceiling/Wall |
| Footprint | 179 mm x 179 mm |
| Weight | approx. 150 kg |
| Protection rating | IP67 |
| Controller | YRC1000 |
| Motion range | |
| A1 | ±170° |
| A2 | (+155/–90) |
| A3 | (+155/–85) |
| A4 | ±200° |
| A5 | ±150° |
| A6 | ±450° |

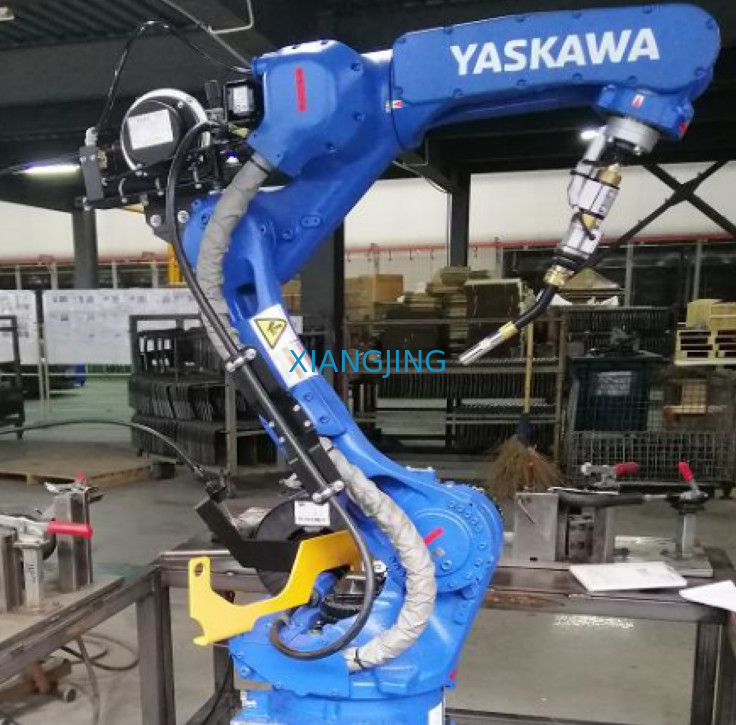

Product image
