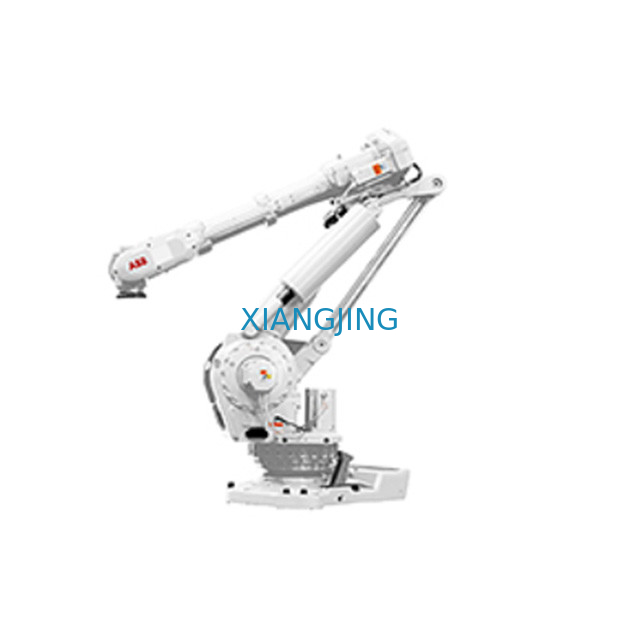

Used Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic Arm
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | ABB |
| Certification: | UL / IEC62619 / IEC62477 / EC62040 / CE / UN38.3 / ETL |
| Model Number: | IRB 6660 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $26,500.00/sets >=1 sets |
| Packaging Details: | One ABB industrial robot IRB 6660 payload 130kg applying as 6 axis sawing robotic arm packing with fumigation wooden frame, WG: 1730 kg<br>Controller and other parts packing with brown box, WG: 75KG<br>Total WG: 1805KG(>VG) |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | IRB 6660 | Number Of Axis: | 6 |
|---|---|---|---|
| Max Payload: | 130KG | Maximum Reach: | 3100 Mm |
| Pose Repeatability(ISO 9283): | ±0.15 Mm | Teach Pendant: | IRC5 Single Cabinet |
| Mounting Position: | Floor | Weight: | 1910 Kg |
| Material: | Aluminum Alloy | Protection Rating: | IP 67, Optional FoundryPlus And Cable Protection |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Bearing, Gearbox, Motor |
| Warranty: | 1 Year | After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, Italy, France, Germany, Brazil, Mexico, Russia, Thailand, Japan |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works | Showroom Location: | France, Germany, Brazil, India, Mexico, Russia, Spain, Thailand, Romania, Japan, Australia |
| Port: | Shanghai | ||
Product Description
Used Industrial Robot IRB 6660 Payload 130kg Applying As 6 Axis Sawing Robotic Arm
Main Specifications
Model:IRB 6660
Maximum reach:3100 mm
Maximum payload:130kg
Pose repeatabilit: ± 0.15 mm
Number of axes :6
Weight:1910kg
Protection rating: IP 67, Optional FoundryPlus and cable protection
| Axes | 6 |
| Payload | 130 kg |
| Reach | 3100 mm |
| Repeatability | 0.11 mm |
| Robot Mass | 1910 kg |
The ABB IRB 6660-130/3.1 robot is a 6-axis robot arm, it offers a 130 kg payload and 3100 mm reach. The repeatability of the ABB IRB 6660-130/3.1 robot is 0.11 mm.
Applications:
- Appliance Automation Robots
- Cutting Robots
- Drilling Robots
- Foundry Robots
- Grinding Robots
- Laser Welding Robots
- Machine Tending Robots
- Milling Robots
- Press Tending Robots
- Sanding Robots
Main features:
Maximum Reach: 1.93 m
Repeatability: 0.07 - 0.11 mm
Controller: IRC5 Single cabinet
Robot Motion Speed:
Axis 2: 130°/s
Axis 3: 130°/s
Axis 4: 150°/s
Axis 5: 120°/s
Axis 6: 190°/s
Axis working range:
Axis 2: +85° to -42°
Axis 3: +120° to -20°
Axis 4: +300° to -300°
Axis 5: +120° to -120°
Axis 6: +360° to -360°
Ejes 2-3: +160° to +20°
More products:
KUKA robot
1: KR 6 R1820 6KG 6axis welding robot
2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot
3: KR 10 R1420 6 aixs 10kg welding robot
4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot
ABB robot
1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot
2: IRB 1520ID 6 axis 5kg payload for welding
3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing
Collaborative robot
1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad
2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload
| Production Name | ABB industrial robot IRB 6660 payload 130kg applying as 6 axis sawing robotic arm |
| Model | IRB IRB 6660 |
| Application | press tending robotic machine |
| Maximum reach | 3100 mm |
| Maximum payload | 130kg |
| Pose repeatability (ISO 9283) | ± 0.15mm |
| Number of axis | 6 |
| Mounting position | Floor |
| Footprint | |
| Weight | 1910 kg |
| Protection rating |
IP 67, Optional FoundryPlus and cable protection
|
| Controller | IRC5 Single Cabinet |
| Motion range | |
| A1 | 180° to -180° |
| A2 | +85° to -42° |
| A3 | +120° to -20° |
| A4 | +300° to -300° |
| A5 | 120° to -120° |
| A6 | +360° to -360° |
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
