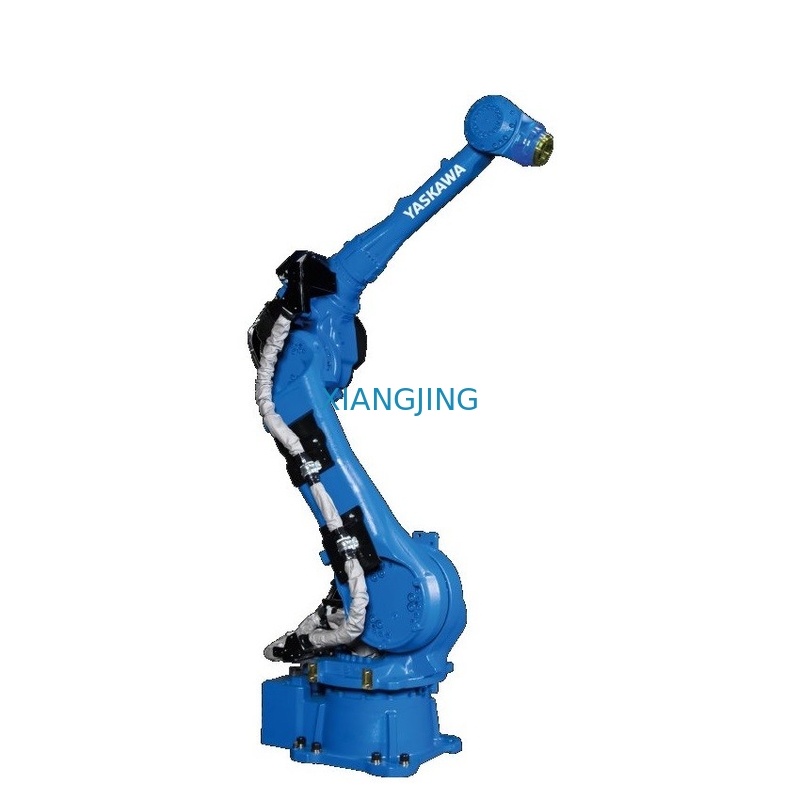

GP50 Part Transfer, Press Tending 6 Axis Industrial Robot With YRC1000 Controller
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | YASKAWA |
| Certification: | CE |
| Model Number: | GP50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | YASKAWA GP50 industrial robot arm standard packing, WG:600 KG<br>YRC1000 Controller standard packing, WG: 60 KG |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Condition: | New | Warranty: | 1 Year, 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support, Online Support | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Local Service Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
| Showroom Location: | None | Product Name: | GP50 6-axis Industrial Robot |
| Number Of Axis: | 6 | Max Payload: | 50 Kg |
| Maximum Horizontal Reach: | 2061mm | Maximum Vertical Reach: | 3578mm |
| Pose Repeatability(ISO 9283): | ±0.07mm | Controller: | YRC1000 Controller |
| Mounting Position: | Floor, Wall, Tilt, Ceiling | Port: | Shanghai |
| High Light: | Part Transfer 6 axis industrial robot,GP50 six axis robots,Press Tending 6 axis industrial robot |
||
Product Description
used Yaskawa Motoman GP50 Long Reach Material Handling, Part Transfer, Press Tending 6-axis industrial robot with YRC1000 controller for Yaskawa
GP50 Introduction:
Key Benifits:
1.High speeds and mounting flexibilityallow use in a variety of applications
2.High wrist ratings provide higherhandling capacity
3.Engineered for easy installation,operation and maintenance
4.Single robot-to-controller cableconnection enables fast setup
Offering high speeds and mounting flexibility for a large range of applications, the GP50 long reach robot offers outstanding performance for increased production output. Fast axis speeds and acceleration capabilities decrease cycle time, while high moment and inertia ratings support the handling of large and heavy payloads. The reduced interference design allows for high-density robot placement, and a streamlined upper arm provides easy access to parts in tight areas. Engineered for easy operation, the GP50 offers high wrist ratings for better handling capacity and a wide wrist motion range to eliminate interference, improving application flexibility.
Applications:
Die Cast, Dispensing, Machine Tending, Material Removal, Material Cutting/Trimming, Material Handling, Part Transfer, Press Tending,IP67
Main Specifications:
| Model | GP50 |
| Maximum Horizontal reach | 2061mm |
| Maximum Vertical reach | 3578mm |
| Maximum payload | 50kg |
| Pose repeatability | ± 0.07mm |
| Number of axes | 6 |
| Weight | 600 kg |
Key Features:
.Increase productivity with the powerful and efficient GP50 robot.
.Long reach six-axis robot offerssuperior performance for a varietyof applications.
.Exceptionallyfast axis speeds andacceleration capabilities reduce cycle time and increase production output.
.50kg payload supports a wide variety of tooling and sensors to fulfill diverse application needs.
.Reduced interference design allowsclose proximity placement of robotsfor high-density workcells.
.Wide wrist motion range eliminates interference and improves application flexibility.
.High moment and inertia ratings allow handling of larger and heavier payloads.
.Cable installation tube facilitates fieldbus routing through the S-axis.
.Single power and control cable reduces wiring time and increases work efficiency.
.New robot harness designfor improved diagnostics andmaintenance.
.Home position data can be saved without battery connection for easy maintenance.
.NSF-H1 certified food-grade .lubricant option available for foodor consumer product packagingenvironment.
.The GP50 has an lP67-rated wrist and an IP54 body standard. An XP (eXtra Protection) package thatincreases the body protection ratingto IP65 is available.
.The GP50 can be floor-, wall-,tilt- or ceiling-mounted. Brakes are included on all axes.
.Compact YRC controller utilizes the lightweight standard teach pendant with intuitive programming.
| Product Name | GP50 Long Reach Material Handling, Part Transfer, Press Tending 6-axis industrial robot with YRC1000 controller for Yaskawa |
| Model | GP50 |
| Application | Die Cast, Dispensing, Machine Tending, Material Removal, Material Cutting/Trimming, Material Handling, Part Transfer, Press Tending |
| Maximum reach | 2061mm |
| Maximum payload | 50kg |
| Pose repeatability (ISO 9283) | ± 0.07mm |
| Number of axes | 6 |
| Mounting position | Floor, Wall, Tilt, Ceiling |
| Weight | 570 kg |
| Protection rating | IP65-IP67 |
| Controller | YRC1000 controller |
| Motion range | |
| S | 180° to -180° |
| L | 135° to -90° |
| U | 206° tp -80° |
| R | 360° to -360° |
| B | 125° to -125° |
| T | 360° to -360° |
