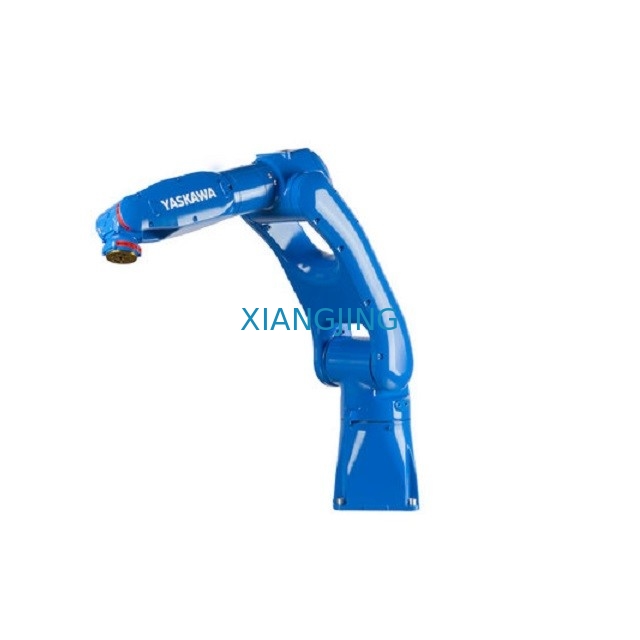

YASKAWA GP7 Pick And Place Robotic Arm 7kg Payload 927mm Arm Robots
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Yaskawa |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Industrial robot arm YASKAWA GP7 for pick and place 7kg Payload 927mm Arm robots<br>ONE YASKAWA GP7 industrial robot 6 Axis robot arm for pick and place machine packing with fumigation wooden frame, WG:205KG<br>Controller and other parts packing with brown |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | Industrial Robot Arm YASKAWA GP7 For Pick And Place Robots | Function: | Multifunctional |
|---|---|---|---|
| Controlled Axes: | 6 | Max. Payload: | 7kg |
| Repeatability: | ±0.03mm | Max. Working Range R: | 927mm |
| Temperature: | 0-45 ℃ | Humidity: | 20%-80% |
| Weight: | 34kg | Power Supply, Average: | 1.0KVA |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear |
| Warranty: | 1 Year | After-sales Service Provided: | Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia |
| Port: | Shanghai | ||
| High Light: | GP7 pick and place robotic arm,7kg Payload 927mm Arm Robots,YASKAWA pick and place robotic arm |
||
Product Description
used Industrial robot arm YASKAWA GP7 for pick and place 7kg Payload 927mm Arm robots
GP7 - Standard Pendant
The advanced programming capability and powerful controller make this robot option ideal for high-performance and more complex tasks.
The MOTOMAN GP7, one of our most successful robot models ever, is an extremely agile, compact and universal robot with 7 kg payload, 927 mm reach and superior repeatability of +/- 0.01 mm. Our customers appreciate the performance of the GP7 for use in all kinds of applications, e.g. handling, assembly, pick&place (often in combination with 3D machine vision) and quality inspection.
High IP67 rating (dust and liquid protection) is standard, allowing the robot to work in harsh environments. The optional anti-corrosive coating (ACC) of the GP7 protects the robot in corrosive atmosphere such as acids, alkali and vapors. A GP7 food grade grease version and CR5 cleanroom class version is also available.
Features:
Applications:
- Machine Tending, Part Transfer, Assembly
Payload:
- 7 kg
Horizontal Reach:
- 927 mm
Vertical Reach:
- 1693 mm
For controller information, please see the MPiec Robotic Series section.
Main Specifications:
Model:GP7
Maximum reach:927mm
Maximum payload:7kg
Pose repeatability:± 0.03mm
Number of axes:6
Weight:34kg
| Product Name | Industrial robot arm YASKAWA GP7 for pick and place 7kg Payload 927mm Arm robots |
| Model | GP7 |
| Application | Handling & General Application |
| Maximum reach | 927mm |
| Maximum payload | 7kg |
| Pose repeatability (ISO 9283) | ± 0.03mm |
| Number of axes | 6 |
| Mounting position | Floor |
| Weight | 34kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller/ YRC1000micro Controller |
| Motion range | |
| S | 170° to -170° |
| L | 145° to -65° |
| U | 190° tp -70° |
| R | 190° to -190° |
| B | 135° to -135° |
| T | 360° to -360° |
GP7 Introduction:
The MOTOMAN GP7 is an extremely fast and precise 6-axis industrial robot with a payload capacity of up to 7 kg. With a reach of 927 mm and a high repeatability of ± 0.03 mm, it is ideally suited to assembly tasks, but also universal handling tasks, CNC machine tool tending or packaging. Its smooth and streamlined modern industrial design is attractive and minimizes the space requirements at the installation site.
Cable entry is optionally from the side at the pedestal or from underneath through the base plate, thus enabling space-saving and uncluttered integration into its environment, irrespective of the intended installation position. The prepared routing of the supply lines in the arm enables optimal integration of the grippers or sensor systems, often dispensing with the need for an external media package.
A world of possibilities is open to the MOTOMAN GP7 with the numerous functions of the MOTOMAN YRC1000 controller or the compact MOTOMAN YRC1000micro controller. In conjunction with the conventional teach pendant, this robot is a reliable mechanical engineering partner. With the innovative operator control concept of the SmartPendant, it provides an excellent point of entry into the world of robotics.
As standard, the MOTOMAN GP7 is designed with the high protection classification IP67. Other variants (e.g. with foodcompatible grease in the food industry, special anti-corrosion coating for applications in aggressive ambient conditions, or as a cleanroom version) are optionally available.
KEY BENEFITS
• Extremely fast and powerful
• Compact and flexible
• Large working range: 927 mm
• Reduced interference contours due to optimized design
• Simple commissioning and maintenance
Applications:
Handling & General Application
