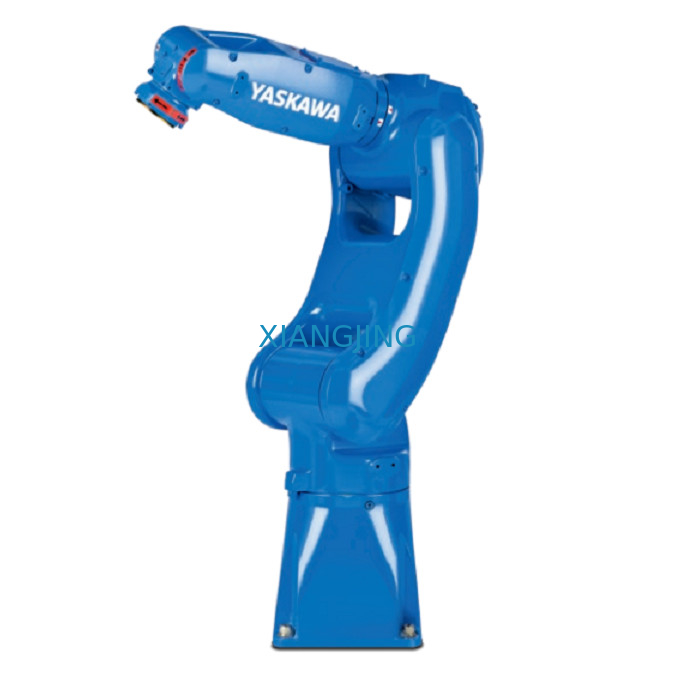

YASKAWA GP8 Used Industrial Robot Arm For Pick And Place 8kg Payload
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Yaskawa |
| Certification: | CE |
| Model Number: | GP8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Industrial robot arm YASKAWA GP8 for pick and place 8kg Payload 727mm Arm robots<br>ONE YASKAWA GP8 industrial robot 6 Axis robot arm for pick and place machine packing with fumigation wooden frame, WG:205KG<br>Controller and other parts packing with brown |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | Industrial Robot Arm YASKAWA GP8 For Pick And Place Robots | Function: | Multifunctional |
|---|---|---|---|
| Controlled Axes: | 6 | Max. Payload: | 8kg |
| Repeatability: | ±0.02mm | Max. Working Range R: | 727mm |
| Temperature: | 0-45 ℃ | Humidity: | 20%-80% |
| Weight: | 32kg | Power Supply, Average: | 1.0KVA |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear |
| Warranty: | 1 Year | After-sales Service Provided: | Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia |
| Port: | Shanghai | ||
| High Light: | YASKAWA GP8 used Industrial robot arm,727mm Arm Robots,used Industrial robot arm 8kg Payload |
||
Product Description
used Industrial robot arm YASKAWA GP8 for pick and place 8kg Payload 727mm Arm robots
| Product Name | Industrial robot arm YASKAWA GP8 for pick and place 8kg Payload 727mm Arm robots |
| Model | GP8 |
| Application | Handling & General Application |
| Maximum reach | 727mm |
| Maximum payload | 8kg |
| Pose repeatability (ISO 9283) | ± 0.02mm |
| Number of axes | 6 |
| Mounting position | Floor |
| Weight | 32kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller/ YRC1000micro Controller |
| Motion range | |
| S | 170° to -170° |
| L | 145° to -65° |
| U | 190° tp -70° |
| R | 190° to -190° |
| B | 135° to -135° |
| T | 360° to -360° |
Main Specifications:
Model:GP8
Maximum reach:727mm
Maximum payload:8kg
Pose repeatability:± 0.02mm
Number of axes:6
Weight:32kg
As standard, the MOTOMAN GP8 is designed with the high protection classification IP67. Other variants (e.g. with foodcompatible grease in the food industry, special anti-corrosion coating for applications in aggressive ambient conditions, or as a cleanroom version) are optionally available.
KEY BENEFITS
• Extremely fast and powerful
• Compact and flexible
• Large working range: 727 mm
• Reduced interference contours due to optimized design
• Simple commissioning and maintenance
Applications:
Handling & General Application
GP8 Introduction:
The MOTOMAN GP8 is an extremely fast and precise 6-axis industrial robot with a payload capacity of up to 8 kg. With a reach of 727 mm and a high repeatability of ± 0.02 mm, it is ideally suited to assembly tasks, but also universal handling tasks, CNC machine tool tending or packaging. Its smooth, streamlined and award-winning modern industrial design is attractive and minimizes the space requirements at the installation site.
Cable entry is optionally from the side at the pedestal or from underneath through the base plate, thus enabling space-saving and uncluttered integration into its environment, irrespective of the intended installation position. The prepared routing of the supply lines in the arm enables optimal integration of the grippers or sensor systems, often dispensing with the need for an external media package.
A world of possibilities is open to the MOTOMAN GP8 with the numerous functions of the MOTOMAN YRC1000 controller or the compact MOTOMAN YRC1000micro controller. In conjunction with the conventional teach pendant, this robot is a reliable mechanical engineering partner. With the innovative operator control concept of the SmartPendant, it provides an excellent point of entry into the world of robotics.
