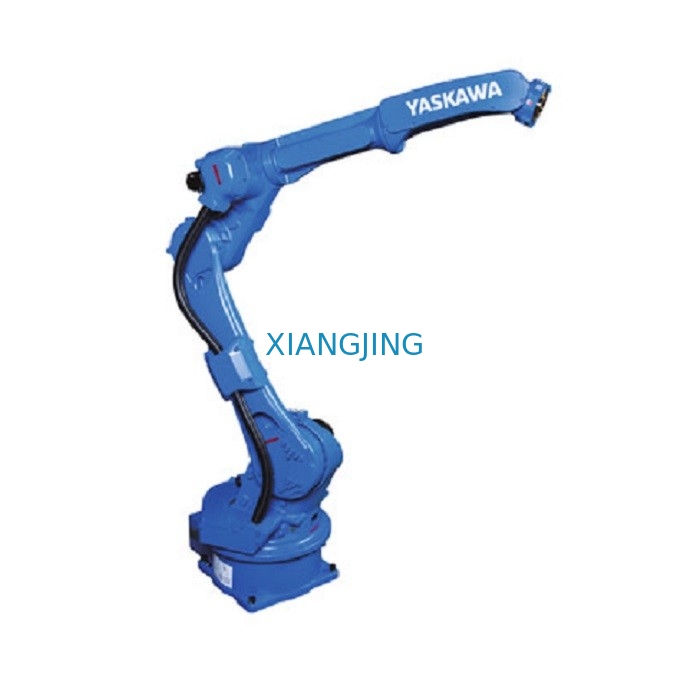

12kg Payload Used Yaskawa Robot For Pick And Place 2010mm Arm Robots
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Yaskawa |
| Certification: | CE |
| Model Number: | GP25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Industrial robot arm Yaskawa GP25-12 for pick and place 12kg Payload 2010mm Arm robots<br>ONE Yaskawa large industrial total station robotic 6 axis YRC1000 material handling machine packing with fumigation wooden frame, WG:605KG<br>Controller and other par |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | Industrial Robot Arm Yaskawa GP25-12 For Pick And Place Robots | Function: | Multifunctional |
|---|---|---|---|
| Controlled Axes: | 6 | Max. Payload: | 12kg |
| Repeatability: | ±0.08mm | Max. Working Range R: | 2010mm |
| Temperature: | 0-45 ℃ | Humidity: | 20%-80% |
| Weight: | 260kg | Power Supply, Average: | 2,0KVA |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear |
| Warranty: | 1 Year | After-sales Service Provided: | Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia |
| Port: | Shanghai | ||
| High Light: | 12kg Payload Used Yaskawa Robot,sencond hand Industrial robot arm,2010mm Used Yaskawa Robot |
||
Product Description
sencond hand Industrial robot arm Yaskawa GP25-12 for pick and place 12kg Payload 2010mm Arm robots
The GP25-12 is a highly versatile 6-axis industrial robot with extended reach of 2.010 mm, 12 kg payload, and an outstanding repeatability of +/- 0.02 mm.
The GP25-12 robot is offering a perfectly tuned payload / speed / wrist allowable moment combination, for impressive speed and acceleration performance. The small footprint, slim arm design allows for minimum installation space and minimizes interference with peripheral devices. Installation is quick and efficient - media cables are guided through the hollow arm and wrist structure.
This robot is also available with high IP65/67 dust & liquid protection to operate in harsh environments.
The GP25-12 is perfect for a wide range of applications, perfect for machine tending, material handling, material removal, assembly, additive manufacturing or dispensing.
Achieve the high transfer capability of the GP-Series robots for large parts with this extended-reach, space-efficient design. Ideal for use in high-density workcells with multiple robots working in close proximity. The GP-series robots offer improved acceleration/deceleration control for all robot positions resulting in overall improved productivity. The small footprint, slim arm design allows for minimum installation space and minimizes interference with peripheral devices. Installation is quick and efficient. A single cable is all that is needed to connect the manipulator to the controller, resulting in easy setup and reduced expenses for maintenance and spare parts inventory.
KEY BENEFITS:
- Extended reach for large part Processing
- Space-efficient design
- Engineered for easy installation, opération and maintenance
- Extended-reach GP25-12 robot offers a broad work envelope, increasing application flexibility.
- Exceptionally fast axis speeds and accélération capabilities reduce cycle times and increase production output.
- Hollow upper arm structure provide optimal cable protection while simplifying programming. A 50 mm thru-hole, between axes 4-6, shields process utilities from wear, interference or snagging.
Main Specifications:
Model:GP25-12
Maximum reach:2010mm
Maximum payload:12kg
Pose repeatability:± 0.08mm
Number of axes:6
Weight:260 kg
|
Product Name |
Industrial robot arm Yaskawa GP25-12 for pick and place 12kg Payload 2010mm Arm robots |
|
Model |
GP25-12 |
|
Application |
Assembly, Material Handling, Part Transfer, Pick and Pack, Pick and Place, |
|
Maximum reach |
2010mm |
|
Maximum payload |
12kg |
|
Pose repeatability (ISO 9283) |
± 0.08mm |
|
Number of axes |
6 |
|
Mounting position |
Floor, Wall, Ceiling |
|
Weight |
260 kg |
|
Protection rating |
IP67 |
|
Controller |
YRC1000 controller/ YRC1000micro Controller |
|
Motion range |
|
|
S |
180° to -180° |
|
L |
155° to -105° |
|
U |
160° tp -86° |
|
R |
200° to -200° |
|
B |
150° to -150° |
|
T |
455° to -455° |
GP25-12 Introduction:
The MOTOMAN GP25-12 is a fast and precise 6-axis industrial robot with a payload capacity of up to 12 kg. With a even larger working range, which reach of 2010 mm and a high repeatability of ±0.08mm, it is ideally suited to assembly tasks, but also universal handling tasks, CNC machine tool tending or packaging. The streamlined modern industrial design minimizes the space requirements at the installation site.
Cable entry is optionally from the side at the pedestal or from underneath through the base plate, thus enabling space-saving and uncluttered integration into the environment, irrespective of the intended installation position. The prepared routing of the supply lines in the arm enables optimal integration of the grippers or sensor systems, often dispensing with the need for an external media package. This reduces also interference contours.
A world of possibilities is open to the MOTOMAN GP25-12 robots with the numerous functions of the MOTOMAN YRC1000 controller. In conjunction with the conventional teach pendant, these robots are reliable mechanical engineering partners. With the innovative operator control concept of the SmartPendant, it provides an excellent point of entry into industrial automation.
As standard, the MOTOMAN GP25-12 are designed with the high protection classification IP67(wrist). Other variants of the MOTOMAN GP25 (e.g. with food-compatible grease in the food industry, special anti-corrosion coating for applications in aggressive ambient conditions, or as a cleanroom version) are optionally available.
KEY BENEFITS
Flexible, fast and powerful
Large working range: 2010 mm
Reduced interference contours due to optimized design
Simple commissioning and maintenance
Applications:
Assembly, Material Handling, Part Transfer, Pick and Pack, Pick and Place, IP67
