Used Industrial Pick And Place Robot YASKAWA SDA5F 5kg Payload 845mm Arm Robots
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Yaskawa |
| Certification: | CE |
| Model Number: | SDA5F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Industrial robot arm YASKAWA SDA5F for pick and place 5kg Payload 845mm Arm robots<br>ONE YASKAWA SDA5F industrial robot 15 Axis robot arm for pick and place machine packing with fumigation wooden frame, WG:205KG<br>Controller and other parts packing with |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | Industrial Robot Arm YASKAWA SDA5F For Pick And Place Robots | Function: | Multifunctional |
|---|---|---|---|
| Controlled Axes: | 15 | Max. Payload: | 5kg |
| Repeatability: | ±0.06mm | Max. Working Range R: | 845mm |
| Temperature: | 0-40 ℃ | Humidity: | 20%-80% |
| Weight: | 110kg | Power Supply, Average: | 1.4KVA |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear |
| Warranty: | 1 Year | After-sales Service Provided: | Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia |
| Port: | Shanghai | ||
| High Light: | used pick and place robot,SDA5F pick and pack robot,pick and place robot YASKAWA |
||
Product Description
used Industrial robot arm YASKAWA SDA5F for pick and place 5kg Payload 845mm Arm robots

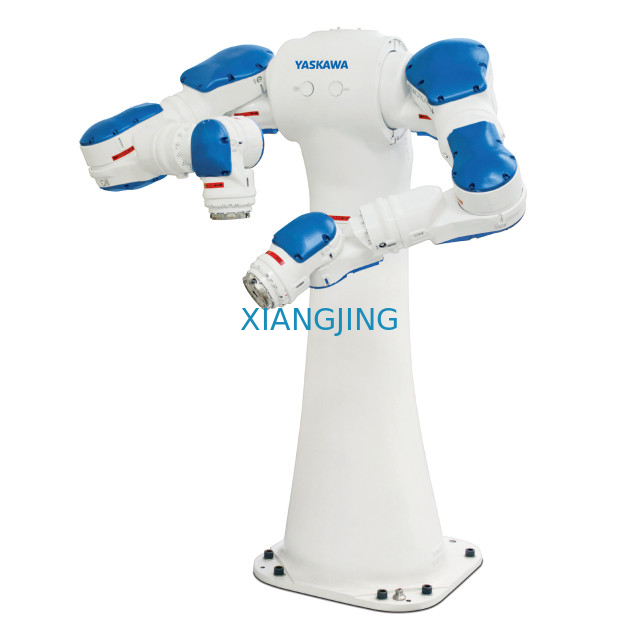

The SDA5F is a dual-arm, 15-axis robot designed for complex assembly and small part material handling applications. Both arms can work together dramatically simplifying end-of-arm tooling. Designed with patented servo actuators, all cables are routed through the arms. The FS100 is a powerful controller with unmatched open software architecture. Superior dexterity and best-in-class wrist characteristics make slim, dual-arm robot ideally suited for assembly, part transfer, machine tending, packaging and other handling tasks that formerly could only be done by people.
KEY BENEFITS
• 15 axes
• Flexible applications
• Compact design allows maximum performance
Applications:
Flexible applications
Main Specifications:
Model:SDA5F
Maximum reach:845mm
Maximum payload:5kg
Pose repeatability:± 0.06mm
Number of axes:15
Weight:110kg
| Product Name | Industrial robot arm YASKAWA SDA5F for pick and place 5kg Payload 845mm Arm robots |
| Model | SDA5F |
| Application | Flexible applications |
| Maximum reach | 845mm |
| Maximum payload | 5kg |
| Pose repeatability (ISO 9283) | ± 0.06mm |
| Number of axes | 15 |
| Mounting position | Floor, ceiling, wall |
| Weight | 110kg |
| Protection rating | IP67 |
| Controller | FS100 |
| Motion range | |
| S | 90° to -270° |
| L | 110° to -110° |
| U | 90° tp -115° |
| R | 180° to -180° |
| B | 110° to -110° |
| T | 180° to -180° |
SDA5F Introduction:
The SDA-series are slim an agile 15-axis dual-arm robots providing „human-like“ flexibility of movement and fast acceleration. They distinguish themselves through slim and lightweight design.
Superior dexterity and best-in-class wrist characteristics make slim, dual-arm robots ideally suited for assembly, part transfer, machine tending, packaging and other handling tasks, that formerly could only be done by people.
This allround-robot are driven by the MOTOMAN FS100 compact controller.
