YASKAWA MPX2600 Industrial Robot Arm For Painting 15kg Payload 2000mm Arm Robots
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Yaskawa |
| Certification: | CE |
| Model Number: | MPX2600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Industrial robot arm YASKAWA MPX2600 for painting 15kg Payload 2000mm Arm robots<br>ONE YASKAWA MPX2600 industrial robot 6 Axis robot arm for painting machine packing with fumigation wooden frame, WG:605KG<br>Controller and other parts packing with brown b |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | Industrial Robot Arm YASKAWA MPX2600 For Painting Robots | Function: | Multifunctional |
|---|---|---|---|
| Controlled Axes: | 6 | Max. Payload: | 15kg |
| Repeatability: | ±0.2mm | Max. Working Range R: | 2000mm |
| Temperature: | 0-40 ℃ | Humidity: | 20%-80% |
| Weight: | 485kg | Power Supply, Average: | 3.0KVA |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear |
| Warranty: | 1 Year | After-sales Service Provided: | Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia |
| Port: | Shanghai | ||
| High Light: | MPX2600 Industrial robot arm,15kg Payload 2000mm Arm Robots,YASKAWA Industrial robot arm |
||
Product Description

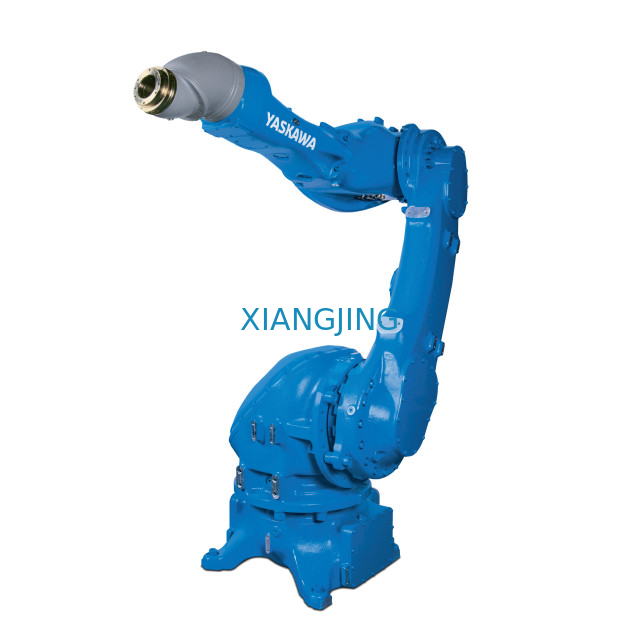

Industrial robot arm YASKAWA MPX2600 for painting 15kg Payload 2000mm Arm robots
The MOTOMAN MPX2600 painting robot provides a payload of 15 kg, and another 20kg payload capability on the U-Arm, which enables mounting of a large variety of guns and large bells on this medium-sized robot. The smooth arm design with a large hollow diameter is optimal for tubing and can prevent interferences among paint and air tubes.
KEY BENEFITS
• High payload (15 kg wrist, 20 arm) for mounting multiple guns and large bells
• Elegant design for optimal tubing and prevention of interferences
• Pressurized enclosure for explosion protection
– Leakage compensation method to achieve positive pressure
– Requires less air than other air flow methods
• Flexible mounting options
– Floor, wall, ceiling
– Three selectable access points for power cables (left, right, back side)
• Optimized range of motion
S/L axis designed with no offset for
– Effective use of area under the arm and
– Closer installation of the robot arm to a work piece
Applications:
Painting
Main Specifications:
Model:MPX2600
Maximum reach:2000mm
Maximum payload:15kg
Pose repeatability:± 0.2mm
Number of axes:6
Weight:485kg
| Product Name | Industrial robot arm YASKAWA MPX2600 for painting 15kg Payload 2000mm Arm robots |
| Model | MPX2600 |
| Application | Painting |
| Maximum reach | 2000mm |
| Maximum payload | 15kg |
| Pose repeatability (ISO 9283) | ± 0.2mm |
| Number of axes | 6 |
| Mounting position | Floor, celling, wall |
| Weight | 485kg |
| Protection rating | IP65 |
| Controller | DX200 controller |
| Motion range | |
| S | 150° to -150° |
| L | 130° to -65° |
| U | 150° tp -65° |
| R | 720° to -720° |
| B | 720° to -720° |
| T | 720° to -720° |
MPX2600 Introduction:
The MOTOMAN MPX2600 painting robot provides a payload of 15 kg, which enables mounting of multiple guns and large bells on this medium-sized robot. The smooth arm design with a large hollow diameter is optimal for tubing and can prevent interferences among paint and air tubes. On the U-Arm additionally paint equipment can be mounted.
Using the leakage compensation method to achieve positive pressure inside the enclosure, less air during operation is required, compared to the conventional air flow method. The MOTOMAN MPX2600 can be mounted on the floor, wall or ceiling and has three selectable access points for power cables. The S/L axis is designed with no offset to enable the effective use of the area under the arm and closer installation to a work piece.
The MOTOMAN MPX2600 is controlled by the high-performance MOTOMAN DX200 controller, which is available with optional Functional Safety Unit (FSU) that offers a wide range of new safety functions.
