Industrial robot arm YASKAWA MPL80 II for pick and place 80kg Payload 2061mm Arm robots
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Yaskawa |
| Certification: | CE |
| Model Number: | MPL80 |
Payment & Shipping Terms:
| Price: | $21,340.00/sets >=1 sets |
|---|---|
| Packaging Details: | Industrial robot arm YASKAWA MPL80 II for pick and place 80kg Payload 2061mm Arm robots<br>ONE YASKAWA MPL80 II industrial robot 5 Axis robot arm for pick and place machine packing with fumigation wooden frame, WG:605KG<br>Controller and other parts packin |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | Industrial Robot Arm YASKAWA MPL80 II For Pick And Place Robots | Function: | Multifunctional |
|---|---|---|---|
| Controlled Axes: | 5 | Max. Payload: | 80kg |
| Repeatability: | ±0.07mm | Max. Working Range R: | 2061mm |
| Temperature: | 0-45 ℃ | Humidity: | 20%-80% |
| Weight: | 550kg | Power Supply, Average: | 4.0KVA |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear |
| Warranty: | 1 Year | After-sales Service Provided: | Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia |
| Port: | Shanghai | ||
Product Description

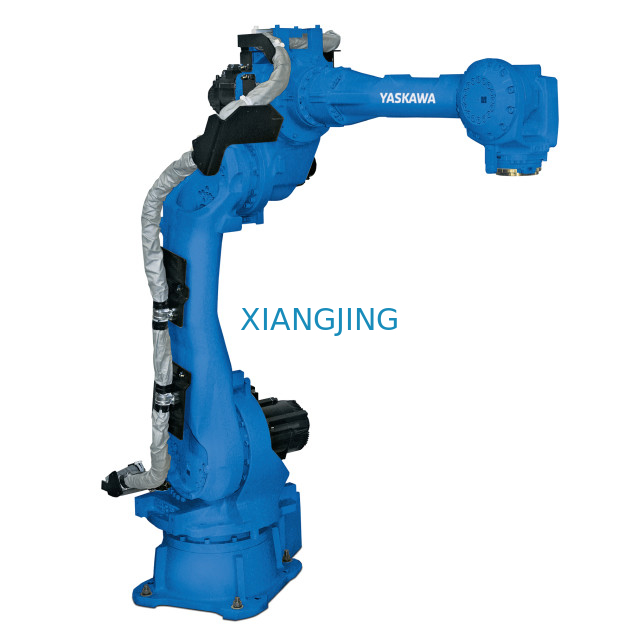

Used Industrial robot arm YASKAWA MPL80 II for pick and place 80kg Payload 2061mm Arm robots
The Yaskawa Motoman MPL80 is a five-axis robot designed for robotic palletizing and de-palletizing applications. The MPL-80 is part of Yaskawa’s “Master Palletizing” robot series that is designed for high performance and reliability. Featuring a payload of 80 kg and a vertical reach of 3,291 mm, this robot is ideal for palletizing medium weight workloads, including cases and bags. The MPL/80 is available with NSF-H1 certified food-grade lubricant as an option for operation in food or consumer product packaging. This Motoman palletizing robot can also be used for automated pick and place and robotic assembly.
Maintenance requirements are kept to a minimum with the MPL 80 with internally routed cables and airlines from its base to its EOAT. This prevents cable interference from occurring during operation and reduces cable wear for maximum reliability. Those with limited floorspace will appreciate the smaller footprint of the Yaskawa Motoman MPL.80 with its compact and slim arm design. This articulated robot is similar in reach and payload to the FANUC M-710ic/70.
Yaskawa Motoman’s PalletSolver software is available with the mpl80 for the fast and simple creation of palletizing paths. The Mpl80 may be paired with either the DX100, DX200 or MLX200 controller. All controllers are highly intelligent and allow for user-friendly operation of the MPL80.
- Controlled Axes5
- Payload (kg)80
- Max Working Range (mm)2046
- Repeatablility (mm)±0.07
- Weight (kg)550
- Power Requirements (kVA)4,0
- Mounting PositionsFloor
-
SPEED TABLE
| Axis | S | L | U | B | T |
| º /sec | 170º | 170º | 170º | 250º | 350º |
Main Specifications:
Model:MPL80 II
Maximum reach:2061mm
Maximum payload:80kg
Pose repeatability:± 0.07mm
Number of axes:5
Weight:550kg
| Product Name | Industrial robot arm YASKAWA MPL80 II for pick and place 80kg Payload 2061mm Arm robots |
| Model | MPL80 II |
| Application | Handling & General Application |
| Maximum reach | 2061mm |
| Maximum payload | 80kg |
| Pose repeatability (ISO 9283) | ± 0.07mm |
| Number of axes | 5 |
| Mounting position | Floor |
| Weight | 550kg |
| Protection rating | IP67 |
| Controller | DX200 |
| Motion range | |
| S | 180° to -180° |
| L | 135° to -90° |
| U | 35° tp -160° |
| R | |
| B | 15° to -15° |
| T | 360° to -360° |
MPL80 II Introduction:
The versatile and powerful 5-axis MOTOMAN MPL80 II robot provides high performance in case palletising, bag palletising, order picking and many further logistical tasks for end-of-line or distribution center automation.
Its extensive vertical reach of 3291 mm combined with 2061 mm horizontal reach enables high palletising loads. Empty tubes for internally routed airlines and cables from base to end-of-arm tool maximize system reliability.
The MPL80 II is driven by the high-perfomance DX200 controller which is available with the optional Category 3 Functional Safety Unit (FSU), providing a variety of new safety functions.
KEY BENEFITS
• Flexible and powerful
• High Payload: 80 kg
• Maximum reliability, empty tubes for internally routed airlines and cables
• Internally routed fieldbus connection (optional) to T-axis/tool
• Enhanced Safety Functions for DX200 Functional Safety Controller (FSU)
Applications:
Handling & General Application
