used 4 axis robot arm YASKAWA MPL160-100 II pick and place machine 100kg Payload 3159mm Arm industrial robot
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Yaskawa |
| Certification: | CE |
| Model Number: | MPL160-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 4 axis robot arm YASKAWA MPL160-100 II pick and place machine 100kg Payload 3159mm Arm industrial robot<br>ONE YASKAWA MPL160-100 II industrial robot 4 Axis robot arm for pick and place machine packing with fumigation wooden frame, WG:1805KG<br>Controller |
| Supply Ability: | 5 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | 4 Axis Robot Arm MPL80 II Pick And Place Machine Industrial Robot | Function: | Multifunctional |
|---|---|---|---|
| Controlled Axes: | 4 | Max. Payload: | 100kg |
| Repeatability: | ±0.5mm | Max. Working Range R: | 3159mm |
| Temperature: | 0-45 ℃ | Humidity: | 20%-80% |
| Weight: | 1700kg | Power Supply, Average: | 9.5KVA |
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Gear |
| Warranty: | 1 Year | After-sales Service Provided: | Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia |
| Port: | Shanghai | ||
Product Description
Used 4 axis robot arm YASKAWA MPL160-100 II pick and place machine 100kg Payload 3159mm Arm industrial robot
High performance four-axis robot arm with internally routed cables and air lines
Can handle multiple infeed conveyors and up to four pallet build locations
Payload capacity: 350LB
Structure: Articulated
Mounting: Floor (pedestal)
End Of Arm Tooling:
SAS Automation Fork Gripper for cases
Joulin Foam Vacuum Gripper
Power requirements: 9.5 kVA
Will require a DX100 controller
Main Specifications:
Model:MPL160-100 II
Maximum reach:3159mm
Maximum payload:100kg
Pose repeatability:± 0.5mm
Number of axes:4
Weight:1700kg
Specifications:
| Axes 6 |
| Payload: 160 KG (352 lbs) |
| Reach: 3159 MM (124.37 in) |
| Repeatability: ±0.5mm (.0196 in) |
| Robot Mass: 1700 KG (3,747 lbs) |
| Structure: Articulated |
| Robot Motion Speed |
| S-Axis 140 °/s (2.44 rad/s) |
| L-Axis 140 °/s (2.44 rad/s) |
| U-Axis 140 °/s (2.44 rad/s) |
| T-Axis 305 °/s (5.32 rad/s) |
| Robot Motion Range |
| S-Axis - ±180° |
| L-Axis - 90°-45° |
| U-Axis - 15.5°-120° |
| T-Axis - 360° |
Feature:
Fast, Flexible, Reliable
Applicable for a variety of industries such as food and beverage, consumer packaged goods and more, MPL-series robots make moving boxes and filling pallets easy, while offering a high ease of maintenance. Highly efficient and reliable, these robot models are ideal for case palletizing, bag palletizing, order picking, depalletizing and other handling tasks.
Performance-Driven Design
-

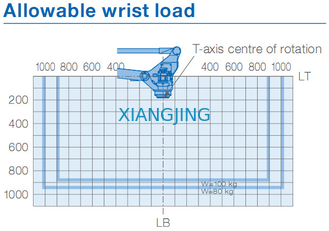

High allowable moment of inertia to handle unbalanced loads effectively.
Maximized Reliability
-
Internally routed airlines and electrical cables enhance safety.
Beneficial Application Options
-
NSF-H1 certified food-grade lubricants for food or consumer product packaging environments.
-
Works with PalletSolver software for offline pallet pattern sequencing.
MPL160-100 II Introduction:

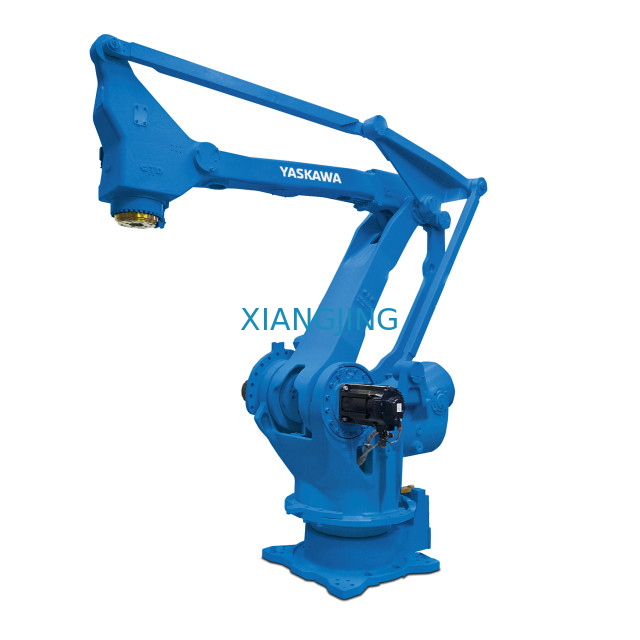

The versatile and powerful 4-axis MOTOMAN MPL160-100 II robot provides high performance in box palletising, case palletising and many further logistical tasks for end-of-line or distribution center automation.
Its extensive vertical reach of 3024 mm combined with 3159 mm horizontal reach enables high palletising loads. Empty tubes for internally routed airlines and cables from base to end-of-arm tool maximize system reliability.
The MPL160-100 II features extremely high acceleration which reduces cycle times.
The MPL160-100 II is driven by the high-perfomance DX200 controller which is available with the optional Category 3 Functional Safety Unit (FSU), providing a variety of new safety functions.
KEY BENEFITS
• Compact, flexible and powerful
• High acceleration and speed: Up to 1800 cycles/h palletizing capa, suitable for box palletising
• High Payload: 100 kg

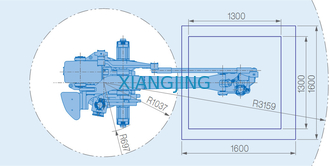

• Large motion range:
– 2624 mm square reach (on pallet 1300 x 1300 mm)
– 2363 mm stack height (on pallet 1600 x 1600 mm)
• Maximum reliability, empty tubes for internally routed airlines and cables
• Internally routed fieldbus connection (optional) to T-axis/tool
• Enhanced Safety Functions for DX200 Functional Safety Controller (FSU)
• Protection class IP54/67
Applications:
Handling & General Application
