Used Industrial Robot Polisher
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | kuka |
| Certification: | CE |
| Model Number: | KR 16 R2010 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $45,450.00/sets 1-9 sets |
| Packaging Details: | ONE Industrial Robot Polisher With Rated Payload Of 16 kg KR 16 R2010 Polishing Robot For Polishing Machine packing with fumigation wooden frame, WG:260KG |
| Supply Ability: | 999 Piece/Pieces per Month |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC | Condition: | New |
| Weight: | 260 Kg, Approx. 260 Kg | Power: | 380 V |
| Warranty: | 1 Year | Weight (KG): | 260 Kg |
| Maximum Reach: | 2013 Mm | Maximum Payload: | 19.2 Kg |
| Rated Payload: | 16 Kg | Number Of Axes: | 6 |
| Teach Pendant: | KUKA SmartPAD-2 | Ambient Temperature During Operation: | 5 °C To 55 °C (278 K To 328 K) |
| Controller: | KR C4 | ESD Requirements: | IEC61340-5-1; ANSI/ESD S20.20 |
| Brand: | KUKA | Port: | Shanghai |
| High Light: | kuka Used Robot Polisher,R2010 used polishing machine,KR 16 Industrial Robot Polisher |
||
Product Description

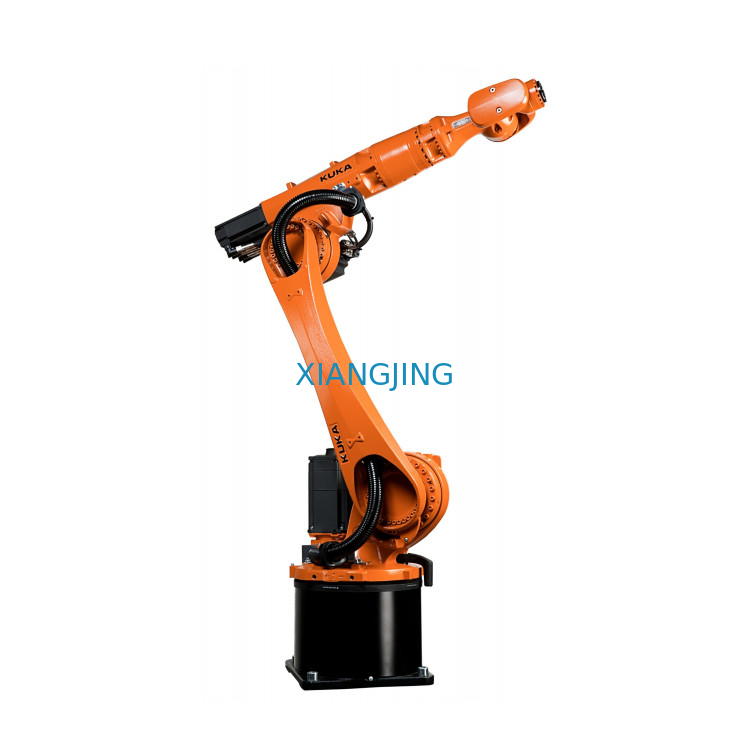

Used Industrial Robot Polisher With Rated Payload Of 16 Kg KR 16 R2010 Polishing Robot For Polishing Machine
The KR 16 R2010-2 is designed for a rated payload of 16 kg in order to optimize the dynamic performance of the robot. With reduced load center distances, higher loads up to the maximum payload may be used. The specific load case must be verified using KUKA.Load.
The KUKA KR 16 R2010 robot is a 6-ax
is robot arm, it offers a 16 kg payload and 2013 mm reach. The repeatability of the KUKA KR 16 R2010 robot is 0.04 mm.
Common applications of the KUKA KR 16 R2010 robot include: 3d printing, arc welding, assembly, dispensing, finishing, material handling, palletizing, pick and place, remote tcp, and spot welding.
Main specifications
- Maximum Load of Robot: 19.2 Kg
- Number of axis: 6
- Maximum horizontal reach: 2013 mm
- Repeatability: ± 0.04 mm
- Controller: KR C4
Motion range (°)
- Axis 1: ±185°
- Axis 2: -185°/65°
- Axis 3: -138°/175°
- Axis 4: ±350°
- Axis 5: ±130°
- Axis 6: ±350°
Maximum speed (°/s)
- Axis 1: 200°/s
- Axis 2: 175°/s
- Axis 3: 190°/s
- Axis 4: 430°/s
- Axis 5: 430°/s
- Axis 6: 630°/s
Robot applications
- Palletizing
- Assembly
- Parts handling
Applications
Palletising , Loading and unloading of parts , Handling of parts , Assembly of parts
Product Description
Specification
|
item
|
value
|
|
Applicable Industries
|
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
|
|
Showroom Location
|
None
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
New Product 2020
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC
|
|
Condition
|
New
|
|
Place of Origin
|
China
|
|
Name
|
Industrial Robot Polisher With Rated Payload Of 16 kg KR 16 R2010 Polishing Robot For Polishing Machine
|
|
Brand Name
|
kuka
|
|
Weight
|
260kg
|
|
Power
|
380 v
|
|
Warranty
|
1 Year
|
|
Weight (KG)
|
260kg
|
|
Maximum reach
|
2013 mm
|
|
Maximum payload
|
19.2 kg
|
|
Rated payload
|
16 kg
|
|
Number of axes
|
6
|
|
Weight
|
approx. 260 kg
|
|
Teach pendant
|
KUKA smartPAD-2
|
|
Ambient temperature during operation
|
5 °C to 55 °C (278 K to 328 K)
|
|
Controller
|
KR C4
|
|
ESD requirements
|
IEC61340-5-1; ANSI/ESD S20.20
|
|
Brand
|
KUKA
|
Packing & Delivery
ONE Industrial Robot Polisher With Rated Payload Of 16 kg KR 16 R2010 Polishing Robot For Polishing Machine packing with fumigation wooden frame, WG:260KG
